106CS Load Cell, 10,000kg...100,000kg/25,000 lb...200,000 lb
Special features:
* High accuracy regulations up to 3 000d for scale
class III
* Stainless steel, welded seal construction,
integral conduit adaptor, protection to IP68
* Harsh environment
* Hazardous area approved to Ex ib II CT4
* Available options:
- Service temperature range up to 120oC [248oF]
- Available with metric and UNC threads
|
| |

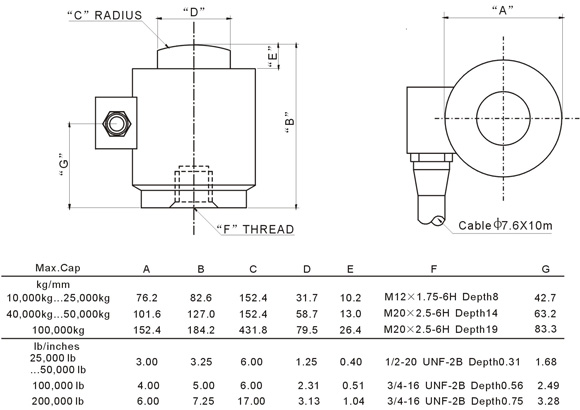

Dimensions (in mm; 1mm = 0.03937 inches)
 |
| |
|
| |
|
| |
| Type |
106CS |
Accuracy class according to OIML R60 or NTEP
Maximal numbers of load cell verification intervals ( n L C ) |
|
C3 / NTEP IIIL 10 000 Multiple Cell
3 000 / 10 000 |
Maximal capacity (Emax) |
lb/kg |
25,000;50,000/
10,000;25,000 |
100,000/
40,000;60,000 |
200,000/
100,000 |
Weight (G), approx. |
kg |
3 |
7 |
18 |
Minimumload cell verification interval(Vmin)
Sensitivity (Cn)
Zero balance
Temperature effect on sensitivity (TKc) *
Temperature effect on zero balance (TKo)
Non-linearity (dlin) *
Repeatability (drep) *
Hysteresis error (dhy) *
Creep (dDR)in 30 min.
Input resistance (RLC) [Red(+)-black(-)]
Output resistance (RO) [Green(+)-white(-)]
Reference excitation voltage (Uref)
Maximal excitation voltage
nsulation resistance (Ris)
Nominal temperature range
Service temperature range
Storage temperature range |
% of Cn
mV/V
mV/V
% of Cn/k
% of Cn/k
%
%
%
%
O
O
V(DC/AC)
V(DC/AC)
GO
oC [ o F]
oC [ o F]
oC [ o F] |
0.02
2±0.25%
±0.06
< ±0.0012
< ±0.0040
< ±0.023
< ±0.030
< ±0.030
< ±0.030
450 ±4.5
480±4.5
0.5.18
25
>2[50 VDC ]
-10.+40[15.+105]
-18.+65[0.+150]
-50.+85[-60.+185] |
Safe load limit (EL)
Breaking load (Ed) |
% of Cn
% of Cn |
150
400 |
Protection class (IP) acc. to IEC529 |
|
IP68 |
Material |
|
Stainless Steel 17-4PH |
Optionally |
|
Explosion proof version(Ex ib II CT4) |
|
| |
* The data for deviation of linearity, repeatability, hysteresis error and temperature effect on sensitivity are typical values. The sum of these data meets the requirements according to OIML R60 or NTEP IIIL 10 000 Multiple Cell. |
| |
|
| |
|
| |
