Type		266AA                266AH
Accuracy class		0.3		0.1
Maximal capacity (Emax) Weight (G), approx.	kg  kg	25;50  0.3	100;200;300;500;  1,000;2,000  0.5	5,000 2.2	10,000 2.6	20,000 4.1	30,000 7.8
Sensitivity (Cn) Zero balance Temperature effect on sensitivity (TKc) * Temperature effect on zero balance (TKo) Non-linearity (dlin) * Repeatability (drep) * Hysteresis error (dhy) * Creep (dDR)in 30 min. Input resistance (RLC) [Red(+)-black(-)] Output resistance (RO) [Green(+)-white(-)] Reference excitation voltage (Uref) Maximal excitation voltage nsulation resistance (Ris) Nominal temperature range Service temperature range Storage temperature range	mV/V mV/V % of Cn/k % of Cn/k % % % % O O V(DC/AC) V(DC/AC) GO oC [ o F] oC [ o F] oC [ o F]	2±1% ±0.04 < ±0.0023 < ±0.0120 < ±0.2 < ±0.3 < ±0.1 < ±0.1 400 ±25 350±3 0.5.12 18 >2[50 VDC ] -10.+40[15.+105] -30.+70[-5.+122] -25.+70[-13.+158]		2±1% ±0.04 < ±0.0023 < ±0.0120 < ±0.05 < ±0.1 < ±0.03 < ±0.05 770 ±30 700±5 0.5.24 36 >2[50 VDC ] -10.+40[15.+105] -30.+70[-20.+160] -50.+85[-60.+185]
Safe load limit (EL) Breaking load (Ed)	% of Cn % of Cn	150  300
Protection class (IP) acc. to IEC529		IP67/IP68
Material		Emax=25kg;50kg  Aluminium		Emax=100kg  Steel alloy  Stainless steel available

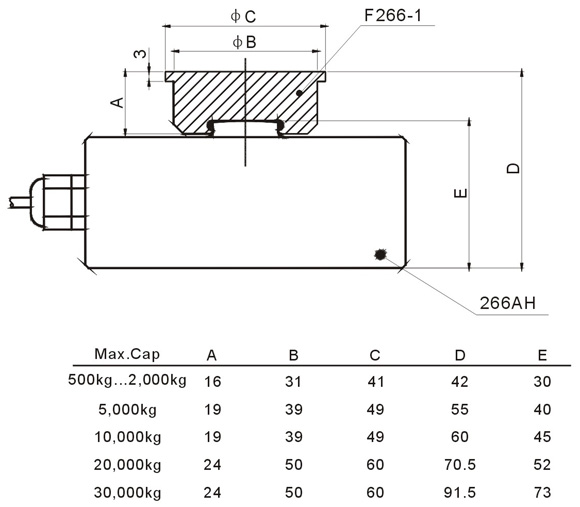

F266-1 Easy top F266-1
