102BS Load Cell, 10,000 lb...100,000 lb
Special features:
* Equivalent to NTEP regulations up to 1:10000
for class III L, Multi Cell
* Welded-seal, IP68
* Designed for center link loading and
compatibility with unlink or similar suspension
systems
* Compatible with other sources
* Stainless steel
* Available Option :
-Service temperature range up to 120oC [248oF]
-6-wire circuit |
| |

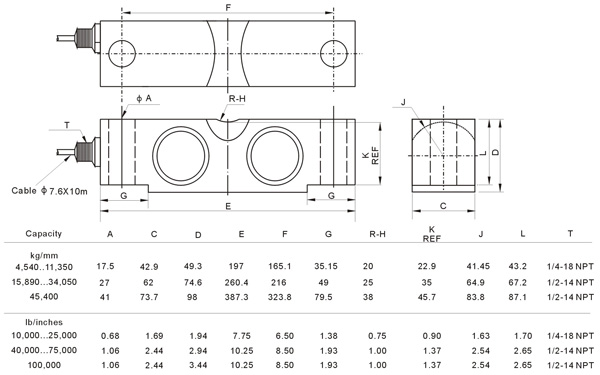

Dimensions (in mm; 1mm = 0.03937 inches)
 |
| |
Technical Data |
| |
| Type |
10 2BS |
Accuracy class according to NTEP |
|
NTEP 1:10000 class III L,Multi Cell |
Maximal capacity (Emax) |
lb |
10,000;20,000;
25,000 |
40,000;50,000;
60,000;70,000 |
100,000 |
| Weight (G) ,approx. |
kg |
3.2 |
8.5 |
10.5 |
Sensitivity (Cn)
Zero balance
Temperature effect on sensitivity (TKc) *
Temperature effect on zero balance (TKo)
Non-linearity (dlin) *
Repeatability (drep) *
Hysteresis error (dhy) *
Creep (dDR)in 30 min.
Input resistance (RLC) [Red(+)-black(-)]
Output resistance (RO) [Green(+)-white(-)]
Reference excitation voltage (Uref)
Maximal excitation voltage
Insulation resistance (Ris)
Nominal temperature range
Service temperature range
Storage temperature range |
mV/V
mV/V
% of Cn/k
% of Cn/k
%
%
%
%
O
O
V(DC/AC)
V(DC/AC)
GO
oC [ o F]
oC [ o F]
oC [ o F] |
3±0.25%
±0.06
< ±0.0012
< ±0.0040
< ±0.030
< ±0.017
< ±0.023
< ±0.023
700 ±10
700±5
0.5.24
36
>2[50 VDC ]
-10.+40[15.+105]
-30.+70[-20.+160]
-50.+85[-60.+185] |
Safe load limit (EL)
Breaking load (Ed) |
% of Cn
% of Cn |
150
300 |
Protection class (IP) acc. to IEC529 |
|
IP68 |
Material |
|
Stainless steel 17-4PH |
|
| |
* The data for deviation of linearity, repeatability, hysteresis error and temperature effect on sensitivity are typical values. The sum of these data meets the requirements according to NTEP 1:10000 Class lll L Multiple Cell.
|
| |
