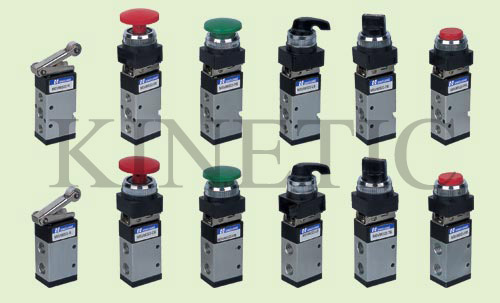

Ordering Code MSV 86 32 1 R Specification Code Mechanical Valve Series Code 86 Series 98 Series Position and Way NO. 32:Two-position Three-way  52:Two-position Five-way  Joint Pipe Bore 1: G1/8 2: G1/4 Button Type Blank: Basic Typeway  R: Roller Type TB:Selective Knob LB: Strengthened Knob PB: Large Round Button PP: Plat Round Button PPL: Convex Round Button EB:With Lock Button

Specification

Model MSV86321 MSV86522 MSV98322 Working Medium 40 Micron Filtered Air Position and Way NO. Two-position Three-way  Two-position Five-way  Two-position Three-way Effective Section Area 12mm2(CV=0.67) 16mm2(CV=0.89) 16mm2(CV=0.89) Joint Pipe Bore G1/8" G1/4" G1/4" Working-pressure Range 0~0.8MPa Operating Temperature 0~60oC
