   Current : Home>>Products
   Pneumatic cylinder >> Mini Cylinder >> MA

Kinetic Automatic Machinery Co.,Ltd., China Ningbo Kinetic Production Trading Co.,Ltd. is specialized in manufacturing cylinder head, cylinder heads, pneumatic and hydraulic components, pneumatic and hydraulic complete kits series, aluminum parts and bending plates, plastic parts and etc. KINETIC integrates designing, manufaturing and sales sevice together. In the passed 10 years, KINETIC developed to a moden enterprise, enjoying more than 25000 square meters workshop and our products, cylinder head, cylinder heads are well sold in Europe, South American, North American, the middle East and the Southeast Asia, the a wide market network of more zhan 55 countries with Ningbo FengLing and Baode Automation Industrial Co., Ltd. as our strong base.
  cylinder head

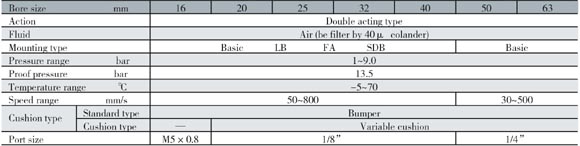

Specification:
<b>Specification:</b>

Symbol:
cylinder

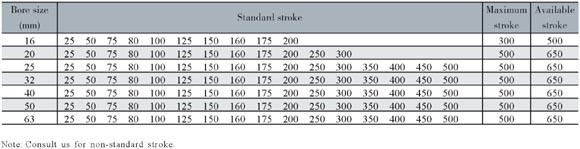

Stroke list:
Stroke list

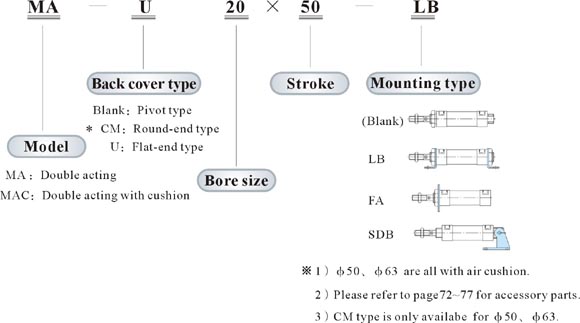

Ordering code:
Ordering code

Characters: Non-Lube Required
All parts are pre-lubricated during assembly and the TEFLON material bushing is used, lubrication is non- required.
Corrosion-resistant
The stainless steel material barrel with a great corrosion resistance and the special surface treatment could guarantee a durable working life.
High-Temperature Type
High-Temperature type cylinder is optional. The special seals will be adopted to be suitable up to 150¡æ.
Accessories
A complete range of accessories is available to meet all kind of demand.
Magnetic
All cylinders are supplied as standard with magnetic pistons for use with switch sensors.

¡¡¡¡¡¤SPECIFICATIONS:
Inner Diameter£¨mm£©
16
20
25
32
40
Actiopn
Double Acting
Fluid
Air
Mounting Type
Basic LB FA SDB
Press.Range
0.5-9.0kgf/cm2
Proof press
13.5kgf/cm2
Operating Temp
0-70¡æ
Piston Speed
30-800mm/s
Cushion
Fix cushion
Port Size
M5¡Á0.8
G1/8"
G1/4"
¡¡¡¡¡¤AIR CYLINDER STROKE:
INNER DIAMETER £¨mm)
Standard Sroke
Max Stroke
Allowable Strolke
16
25 50 75 80 125 150 160 175 200
300
500
20
25 50 75 80 125 150 160 175 200 250 300
500
650
25
25 50 75 80 125 150 160 175 200 250 300 350 400 450 500
500
650
32
25 50 75 80 125 150 160 175 200 250 300 350 400 450 500
500
650
40
25 50 75 80 125 150 160 175 200 250 300 350 400 450 500
500
650
