   Current : Home>>Products
   Valve >> pneumatic vavle >> 4A200 Series Air Valve(5/2 5/3 way)

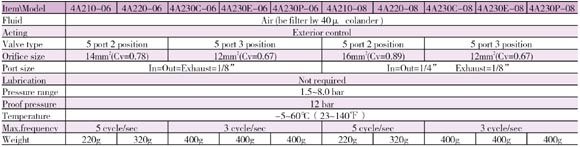

Specification:
<b>Specification</b>

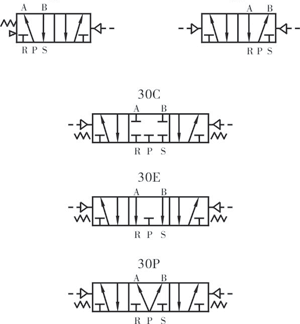

Symbol:
Symbol

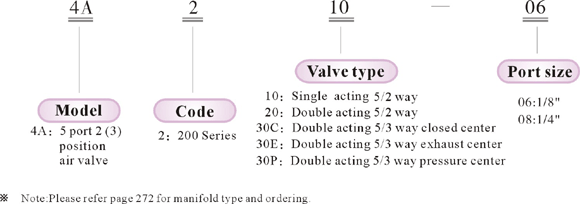

Ordering code:
Ordering code

Characters:

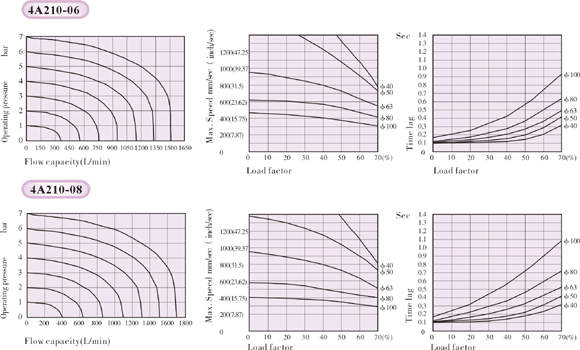

Flow characteristics:
Flow characteristics

  Click:33  Update:2006-3-7 <Print> <Back>
