 Load Cells >> Single Ended Beam >> 563YS |
|
| |
563YS Load Cell , 250kg.10,000kg/ 1,000 lb.20,000 lb
Special features:
* High accuracy regulations up to 5 000d for scales
class III
* Stainless steel, welded seal construction,
protection to IP68
* Harsh environment or food industry
* Hazardous area approved to Ex ib II CT4
*Available Options:
- Service temperature range up to 120OC [248OF]
- Available with metric thread and UNC thread
- 6-wire circuit |
| |

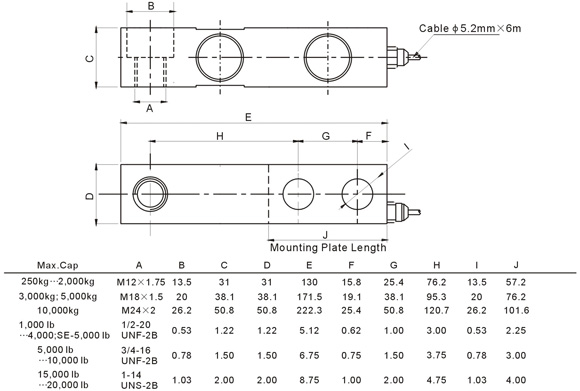

Dimensions (in inches; 1inch = 25.4 mm)
 |
| |
|
| |
| Technical Data |
| Type |
563YS |
Accuracy class according to OIML R60
Maximal numbers of load cell verification intervals ( n L C ) |
|
C3
3 000 / 5 000 |
Maximal capacity (Emax) |
lb/kg |
1,000;1,500;2,500;
4,000;SE-5,000/
250;500;1,000;2,000 |
5,000;10,000/
3,000;5,000 |
15,000;
20,000/
10,000 |
Weight (G), approx. |
kg |
1 |
1.8 |
4.1 |
Minimumload cell verification interval(Vmin)
Sensitivity (Cn)
Zero balance
Temperature effect on sensitivity (TKc) *
Temperature effect on zero balance (TKo)
Non-linearity (dlin) *
Repeatability (drep) *
Hysteresis error (dhy) *
Creep (dDR)in 30 min.
Input resistance (RLC) [Red(+)-black(-)]
Output resistance (RO) [Green(+)-white(-)]
Reference excitation voltage (Uref)
Maximal excitation voltage
nsulation resistance (Ris)
Nominal temperature range
Service temperature range
Storage temperature range |
% of Cn
mV/V
mV/V
% of Cn/k
% of Cn/k
%
%
%
%
O
O
V(DC/AC)
V(DC/AC)
GO
oC [ o F]
oC [ o F]
oC [ o F] |
0.02
2±0.25%
±0.06
< ±0.0012
< ±0.0040
< ±0.023
< ±0.023
< ±0.023
< ±0.030
350 ±7
352±3
0.5.10
15
>2[50 VDC ]
-10.+40[15.+105]
-18.+65[0.+150]
-50.+85[-60.+185] |
Safe load limit (EL)
Breaking load (Ed) |
% of Cn
% of Cn |
150
300 |
Protection class (IP) acc. to IEC529 |
|
IP68 |
Material |
|
Stainless Steel 17-4PH |
Optionally |
|
Explosion proof version(Ex ib II CT4) |
|
* The data for deviation of linearity, repeatability, hysteresis error and temperature effect on sensitivity are typical values. The sum of these data meets the requirements according to OIML R60. |
|
|
| |
|
| |
