   Valve >> Solenoid valve >> MVSD-180

Kinetic Automatic Machinery Co.,Ltd., China Ningbo Kinetic Production Trading Co.,Ltd. is specialized in manufacturing control solenoid valve, control solenoid valves, pneumatic and hydraulic components, pneumatic and hydraulic complete kits series, aluminum parts and bending plates, plastic parts and etc. KINETIC integrates designing, manufaturing and sales sevice together. In the passed 10 years, KINETIC developed to a moden enterprise, enjoying more than 25000 square meters workshop and our products, control solenoid valve, control solenoid valves are well sold in Europe, South American, North American, the middle East and the Southeast Asia, the a wide market network of more zhan 55 countries with Ningbo FengLing and Baode Automation Industrial Co., Ltd. as our strong base.

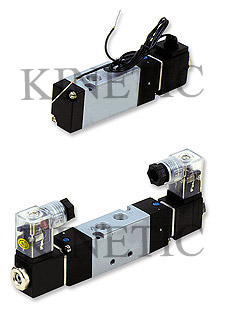

control solenoid valve

Ordering Code

MVSD

180

4

E2

C

AC110V

L

BSP

Model Body Width 3:Three Way
4:Four Way		 E1:Single Coil
E2:Double Coil		 C:The Middle Position Close
P:The Middle Position Ventilate
R:The Middle Position Exhaust		 Standard
Voltage
DC24V
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz		 Wiring Form
Blank:DIN Connector
L:With Lighting Connector
W: Lead Wire Type		 Joint Pipe Thread
Blank: PT Thread
BSP: BSP Thread
NPT: NPT Thread
     Specification
Model MVSD -180-3E1,E2 MVSD -180-4E1,E2 MVSD -180-4E2C.P.R
Joint Pipe Bore Code 6A
Position and Way NO. Two-position Three-way Two-position Five-way Three-position Five-way
Joint Pipe Bore PT-1/8"
Operating Fluid Air
Working-pressure Range 0.15-0.8MPa 0.2-0.7MPa
Pressure Resistance 1.0MPa
Effective Section Area 12mm2(CV=0.67) 12mm2(CV=0.67) 9mm2(CV=0.50)
Answer Time 30ms
Operating Temperature 5-50oC
Standard Voltage AC: 110V, 220V (50/60)Hz DC: 24V
Power Consumption AC: 3.7/3.1VA DC: 2.9W
Voltage Range ¡À10%
Insulation Class F Class
Weight 120g 172g 124g 176g 190g
