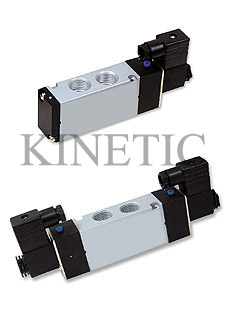

   Valve >> Solenoid valve >> MVSD-460

Kinetic Automatic Machinery Co.,Ltd., China Ningbo Kinetic Production Trading Co.,Ltd. is specialized in manufacturing 2 way valve, 2 way valves, pneumatic and hydraulic components, pneumatic and hydraulic complete kits series, aluminum parts and bending plates, plastic parts and etc. KINETIC integrates designing, manufaturing and sales sevice together. In the passed 10 years, KINETIC developed to a moden enterprise, enjoying more than 25000 square meters workshop and our products, 2 way valve, 2 way valves are well sold in Europe, South American, North American, the middle East and the Southeast Asia, the a wide market network of more zhan 55 countries with Ningbo FengLing and Baode Automation Industrial Co., Ltd. as our strong base.
  2 way valve
Ordering Code

MVSD

460

4

E2

C

AC110V

L

Model Body WAidth 3:Three Way
4:Four Way
E1:Single Coil
E2:Double Coil
C:The Middle Position Close
P:The Middle Position Ventilate
R:The Middle Position Exhaust
Standard Voltage
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
Wiring Form
Blank:DIN Connector
L:With Lighting Connector
E:Blast-proof Type (sheet 1)
W: Lead Wire Type
     Specification
Model MVSD-460-3E1 MVSD-460-4E1,E2 MVSD-460-4E2C.P.R
Joint Pipe Bore Code 15A
Position and Way NO. Two-position Three-way Two-position Five-way Three-position Five-way
Joint Pipe Bore G1/2
Operating Fluid Air
Working-pressure Range 0.2-0.7MPa 0.3-0.7MPa
Pressure Resistance 1.05MPa
Effective Section Area 50mm2(CV=2.79) 30mm2(CV=1.68)
Answer Time 50ms
Operating Temperature 5-50oC
Standard Voltage AC: 110V, 220V (50/60)Hz DC: 24V
Power Consumption AC: 6/4.9VA DC: 2.5W
Voltage Range ¡À10%
Insulation Class F Class
Weight 353g 413g 4982g 755g
    Specification
Blast-proof Class EEx m II T4
Standard Voltage AC: 110V, 220V (50/60)Hz DC: 24V
Power Consumption AC: 4.4VA DC: 5W
Voltage Range ¡À10%
Insulation Class F Class
