   Valve >> Solenoid valve >> VF

Kinetic Automatic Machinery Co.,Ltd., China Ningbo Kinetic Production Trading Co.,Ltd. is specialized in manufacturing lactching solenoid valve, lactching solenoid valves, pneumatic and hydraulic components, pneumatic and hydraulic complete kits series, aluminum parts and bending plates, plastic parts and etc. KINETIC integrates designing, manufaturing and sales sevice together. In the passed 10 years, KINETIC developed to a moden enterprise, enjoying more than 25000 square meters workshop and our products, lactching solenoid valve, lactching solenoid valves are well sold in Europe, South American, North American, the middle East and the Southeast Asia, the a wide market network of more zhan 55 countries with Ningbo FengLing and Baode Automation Industrial Co., Ltd. as our strong base.

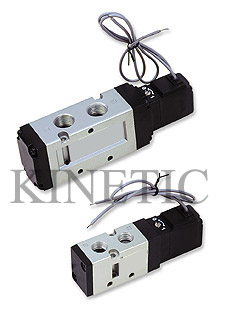

  lactching solenoid valve
Ordering Code

VF3

1

30

AC110V

L

Series Code
VF3 Series
VF5 Series
VZ5 Series		 Coil and Placese
1:Single-head Double-position
2:Double-head Double-position
3C:Double-head Three-position Close Type
4:Double-head Three-position Exhaust Type
5:Double-head Three-position Pressure Type		 Order NO.
VF3: 30
VF5: 20
VZ5: 20		 Standard Voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz		 Wiring Form
Blank:standard Connector
LD:Brown with Lighting Connector
LD1:White with Lighting Connector
W: Lead Wire Type
     Specification
Model VF3130 VF3230 VF33(4/5)30 VF5120 VF5220 VF53(4/5)50 VZ5120 VZ5220 VZ53(4/5)50
Position and Way NO.  Two-position Five-way Three-position Five-way Two-position Five-way Three-position Five-way Two-position Five-way Three-position Five-way
Effective Section Area 16mm2(CV=0.89) 12mm2(CV=0.67) 25mm2(CV=1.40) 18mm2(CV=1.00) 12mm2(CV=0.67) 9mm2(CV=0.50)
Working Medium 40 Micron Filtered Air
Motion Pattern Inner Guide Type
Working-pressure 0.15~0.8MPa
Max. Pressure Resistance 1.2MPa
Operating Temperature 5-50oC
Voltage Range ¡À10%
Power Consumption AC: 4.5VA DC: 3W
Insulation & Protection Class F Class. IP65
Wiring Form Lead Wire or Connector type
Highest Action Frequency Cycle / Sec
Shortest Excitation Time 0.05 0.05 Second
