363YH Load Cell, 1,000kg ... 300,000kg
Special features:
* Suitable for scales according to OIML R60 up to 1 000d
* Low profile; suitable for tension and compression using
* Small deflection, the compact construction is suitable for withstanding extraneous loads
* High permissible dynamic load
* Protection to IP67
* Explosion proof version (Ex ib II CT4)
* Available options:
-6 wire circuit
-Service temperture range up to 120oC [248oF]
-Service lightning proof
|
| |

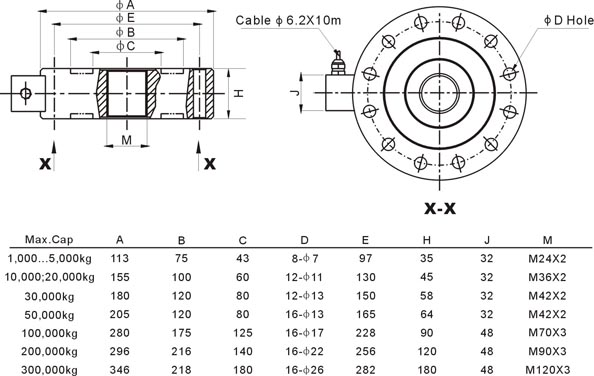

Dimensions (in mm; 1mm = 0.03937 inches)
 |
| |
|
| |
| Technical Data |
| Type |
363YH |
Accuracy class according to OIML R60
Maximal numbers of load cell verification intervals ( n L C ) |
C1
1 000 |
Maximal capacity (Emax) |
kg |
1,000;
2,000;
3,000;
5,000 |
10,000;
20,000 |
30,000 |
50,000 |
100,000 |
200,000 |
300,000 |
Weight (G), approx. |
kg |
2.4 |
6.1 |
11 |
15 |
39.4 |
59 |
120 |
Minimum load cell verification interval (Vmin)
Sensitivity (Cn)
Zero balance
Temperature effect on sensitivity (TKc) *
Temperature effect on zero balance (TKo)
Non-linearity (dlin) *
Repeatability (drep) *
Hysteresis error (dhy) *
Creep (dDR)in 30 min.
Input resistance (RLC) [Red(+)-black(-)]
Output resistance (RO) [Green(+)-white(-)]
Reference excitation voltage (Uref)
Maximal excitation voltage
nsulation resistance (Ris)
Nominal temperature range
Service temperature range
Storage temperature range |
% of Cn
mV/V
mV/V
% of Cn/k
% of Cn/k
%
%
%
%
O
O
V(DC/AC)
V(DC/AC)
GO
oC [ o F]
oC [ o F]
oC [ o F] |
0.1
2±1%
±0.04
< ±0.0023
< ±0.0120
< ±0.050
< ±0.030
< ±0.050
< ±0.050
770 ±30
700±5
0.5.24
36
>2[50 VDC ]
-10.+40[15.+105]
-30.+70[-20.+160]
-50.+85[-60.+185] |
Safe load limit (EL)
Breaking load (Ed) |
% of Cn
% of Cn |
150
300 |
Protection class (IP) acc. to IEC529 |
|
IP67 |
Material |
|
Steel alloy |
Optionally |
|
Explosion proof version(Ex ib II CT4) |
|
* The data for deviation of linearity, repeatability, hysteresis error and temperature effect on sensitivity are typical values. The sum of these data meets the requirements according to OIML R60. |
|
|
| |

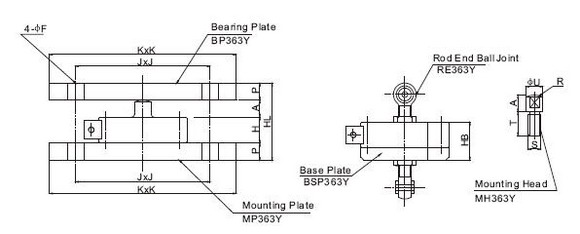

Dimensions (in mm; 1mm = 0.03937 inches)
 |
| |
|
| |
|
| |
